Engineering

By fusing artisanal skills and advanced IT technology, J-MAX aims to attain “the world’s fastest die manufacturing,” continuously meeting the challenges of manufacturing products that satisfy users around the world.

As the challenge to manufacture next-generation products has begun, J-MAX’s molding technology, which maximizes the advantages of digital engineering, combines its technology with IT to develop its original design and analysis technologies.

Forming technologies for super high tensile materials

The crystallization of cold-press processing technology!
Aiming for the ultimate in super high tensile steel plate forming technology

Environment surrounding the automotive industry

Development of fuel-efficient vehicles that are eco-conscious is proceeding in the automotive industry. The transition to super high tensile materials that contribute to making cars lighter and auto bodies stronger has become an indispensable theme.
J-MAX is conducting a wide range of R&D including on the processing of super high tensile materials.

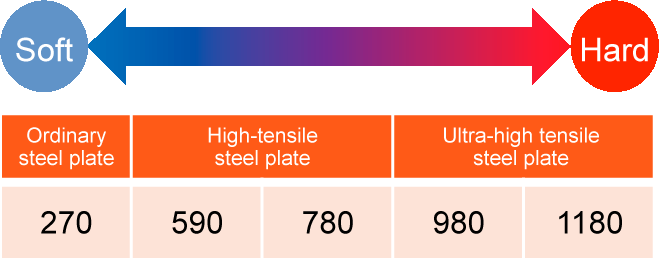

What is super high tensile material?

This refers to high tensile strength steel plate.: Ordinary steel plate has a tensile strength of 270MPa, whereas high tensile strength steel is 590-780MPa, and super high tensile strength material is generally 980MPa or higher

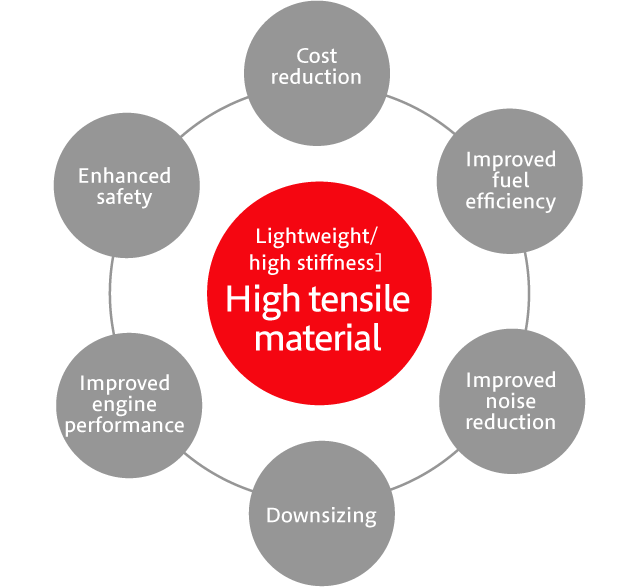

Advantages of super high tensile material

Contributing to collision safety and weight reduction: High tensile materials after stronger than ordinary steel plate and thus improve collision safety. In addition, the use of stronger materials enables plates to be thinner than with conventional materials. The properties of high tensile materials have the potential to improve vehicles’ collision safety and fuel efficiency and therefore these materials have enjoyed increasing adoption in recent years.

Disadvantages of super high tensile material

High strength makes press forming difficult

・Given low ductility, breakage readily occurs so it is necessary to optimize the product form and forming method.
・Spring-back is substantial because the form is not conducive to cooling, so a forming method that suppresses spring-back volume is needed.
・The forming load of the press is large, so large-scale press facilities and dyes with high strength and stiffness are required.

Differences in approaches to creating high-tensile steel depending on manufacturing method

Cold-forming manufacturing method for high-tensile steel: The form is shaped by sandwiching it in the dye (no heating and cooling)
Hot stamp manufacturing method: The steel plate is heated to 900°C and the form is shaped by sandwiching it in the dye while cooling.

	Productivity	Environment	Cost	Weight	Forming difficulty
Cold-forming press	○	○	○	○	Hard
Hot stamping	×	×	×	○	Easy

Apart from the difficulty in forming, the cold forming of super high tensile materials offers advantages over hot stamping. Difficulty in forming can be overcome by the original technologies that J-MAX has built up since its foundation. Going forward, J-MAX will contribute to the needs of its customers and the environment by evolving and building on its cold forming of super high tensile forming technologies.

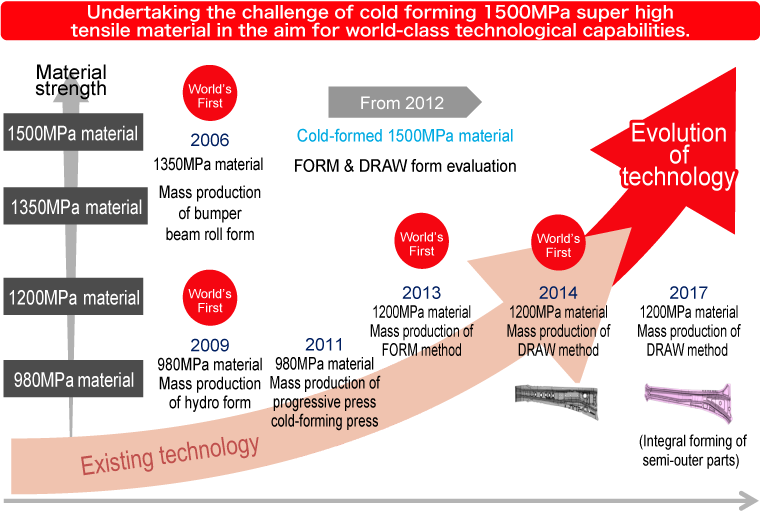

Development of ultra-high tensile technology using cold-forming presses

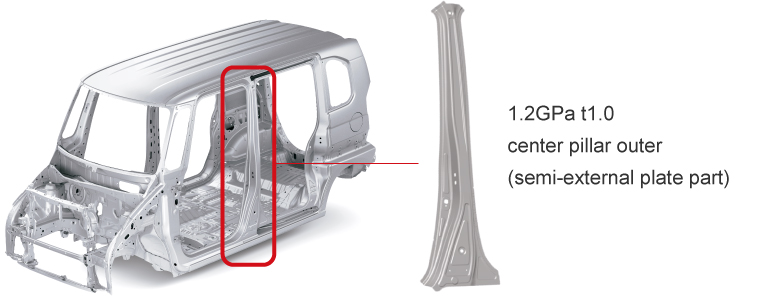

World’s first 1.2GPa-grade super high tensile material used in semi-outer center pillar

Achieved through computer simulation technology and long-standing technical know-how of master craftsmen: The center pillar is an external plate part that is visible to customers when they open car doors, so they must have a high-quality appearance that is free of wrinkles and warping.
J-MAX has evolved computer simulation technology to forecast the finished look of products made from materials that are difficult to form. In addition, we were able to use our long-established know-how in dye craftsmanship and original forming technology to suppress the substantial spring-back that super high tensile material is known for.

Pagetop

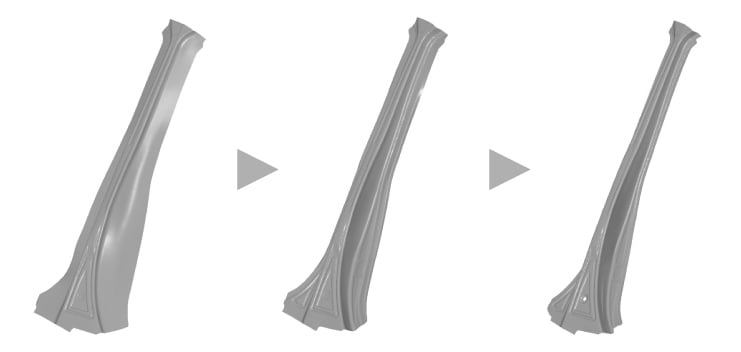

Process Design Technologies

J-MAX engages in process design for products using forming simulations and its know-how in the properties of super high tensile materials.
Since high tensile materials are difficult to process and form, we consider the combination of each process (drawing, trimming, bending, etc.) to match the product’s properties.

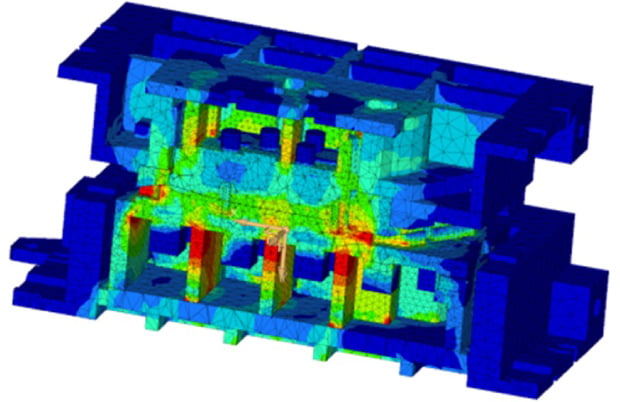

Process design factoring in machining load to control wrinkling, warping, and spring-back

Pagetop

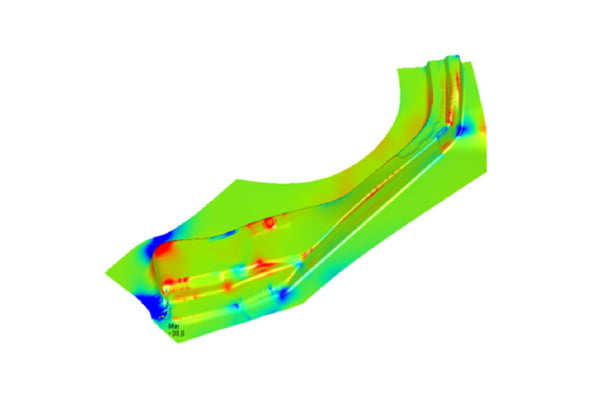

What is forming simulation?

A virtual model is created from product form data, then cracking, wrinkling, warping, and spring-back are analyzed after recreating the press forming process. We have made forecasting possible by creating a database of human knowledge and technology and integrating it with the latest simulation technology to analyze and anticipate product defects with computers in a way not possible in the past.

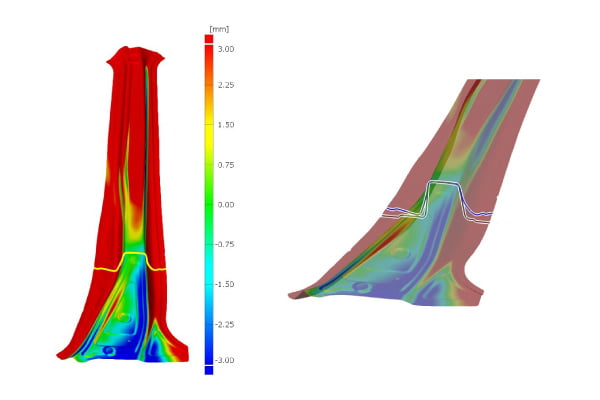

Evaluation of cracks, wrinkles, and bends

If breaking, wrinkling, bending, or spring-back arise, the virtual model is improved and these defects are analyzed once again. Repeating this process results in rapid dye creation without waste.

Measures to factor in issues into product form

Pagetop

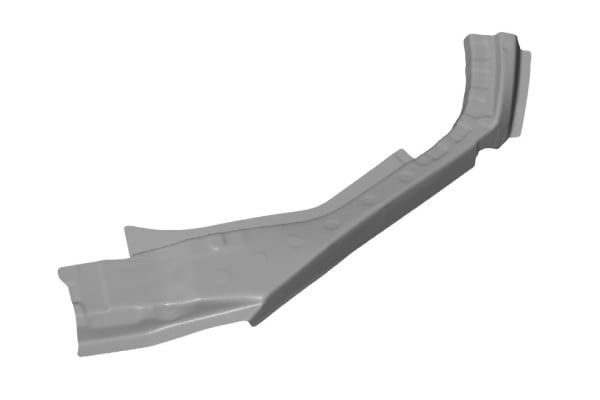

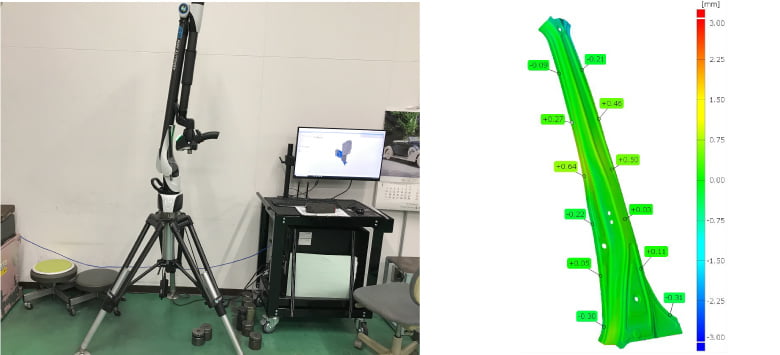

Evaluation by contactless measurement

The dye or product to be measured is converted to 3D data with camera-equipped measuring equipment. The entire object can be viewed instantaneously enabling fast fine-tuning of dyes.

Pagetop

Dye technology

We provide the optimal dyes for all manufacturing equipment thanks to advanced manufacturing technological capabilities built up over many years through IT and mass-production quality that was earned customers’ trust. We assure this through the skills of master craftsmen raised from our talent development.

Pagetop

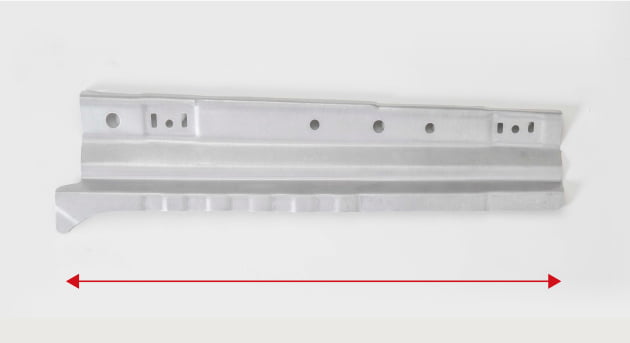

Precision technologies

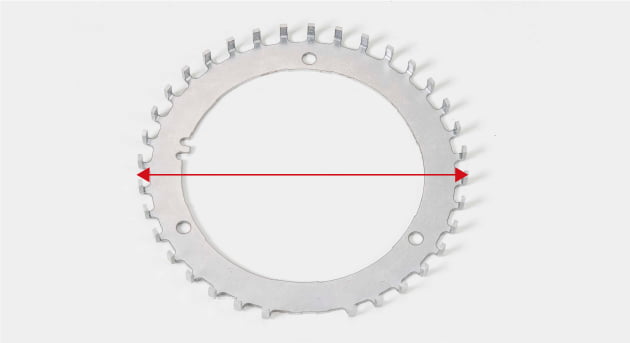

Processing Technology for Precision Parts

Compared with auto body parts, greater precision is demanded in precision parts. In general, these are manufactured with highly precise NC lathes and the like. However, with the dye technology that J-MAX has built up since its foundation, some precision parts can be manufactured with lower processing costs just with press processing using dyes. Precision is secured resulting in a major reduction in unit costs for processing.

Tolerance range by part*

Part	Tolerance range	Processing method
Auto body part	±0.1mm unit	Press processing (press machinery)
Precision part	±0.01mm unit	Cutting processing (NC lathes, etc.)

※製品寸法の許容範囲

Features by processing method

Processing method	Features
Cutting processing	Highly precise processing is possible, but requires more time than press processing
Press processing	Difficult to achieve the precision required in precision parts, but processing time is faster than cutting processing

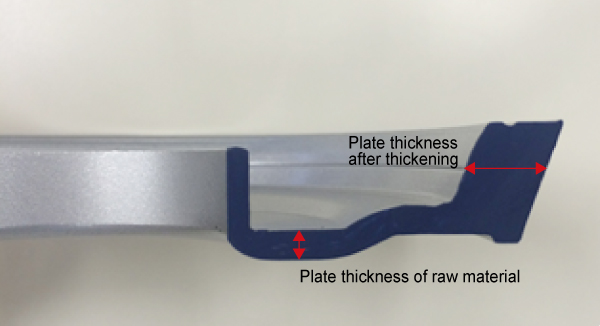

Thickening process technology

In the past, materials were processed through hot forging and then the product shape created, followed by trimming processing of all surfaces. With thickening processing, thin materials are selectively thickened, so not all surfaces need to be trimmed. This leads to a reduction in trimming time and considerable cost savings.
J-MAX has established thinking process technology based on form analysis that can thicken materials by up to 2.5 times through the use of cold pressing forming of products.
